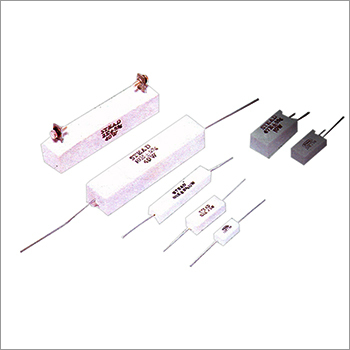

Ceramic Encased Resistors

Ceramic Encased Resistors
Ceramic Encased Resistors
Product Code : CER-21
Brand Name : LAKSHMI TRADERS
Product Description

Since our inception in the domain, we have been engaged in providing a wide array of Ceramic Encased Resistors. A crew of diligent professionals manufacture these resistors with the help of latest techniques using the finest grade ceramic and other basic materials. The offered resistors are used in various electronic devices such as transistors, motors etc. Moreover, our valued clients can get these Ceramic Encased Resistors from us at affordable prices in various specifications.

Features:

  • Seamless finish
  • High resistance value
  • Withstand high temperature
  • Sturdy design





Resistors wound on high alumina ceramic rods, fitted in steel caps having tin platted copper leads / brass clips for terminations are encapsulated using heat proof chemical in ceramic boats/pipes.

Salient Features :

  • Wide range available from 1 w - 40 w.
  • Ohmic Values E01 - 100 K.
  • Instant Overload capability.
  • Excellent heat dissipation.
  • Non-flammable/heat proof chemical restricts self ignition due to flow of over current, then specified.
  • For high resistance value, the winding core is replaced by metal oxide film cutting core (MO).

Specification :

  • Range : E01 Ohms - 100 K Ohms
  • Power : 1w to 40w
  • Tolerance : +5%, +10%
  • TC + 50 PPM, + 260 PPM
  • (Closer accuracy available on request)

Technical Specification :

Watt

Dimensions(mm)

Resistance Range(Ohms)

L+-1.0

W+-1.0

H+-1.0

Wirewound

MO

1w-3w

16.0

8.0

8.0

E01-50E

51E-100K

5w

21.0

9.0

9.0

E01-1K

1K1-100K

7w

25.0

9.0

9.0

E001-1K

1K1-100K

10w

50.0

10.0

10.0

E001-1K

1K1-100K

20w

50.0

14.0

14.0

E001-1K

-

25w

65.0

14.0

14.0

E001-1K

-

40w

90.0

20.0

20.0

E001-1K

-

Vertical Mounting

Technical Specifications:

Watt

Dimensions(mm)

Resistance Range(Ohms)

H+-1.0

W+-1.0

S+-1.0

Wirewound

MO

5w

25

13

9

E01-1K

1K1-100K

10w

36

16

12

E01-1K

1K1-100K
