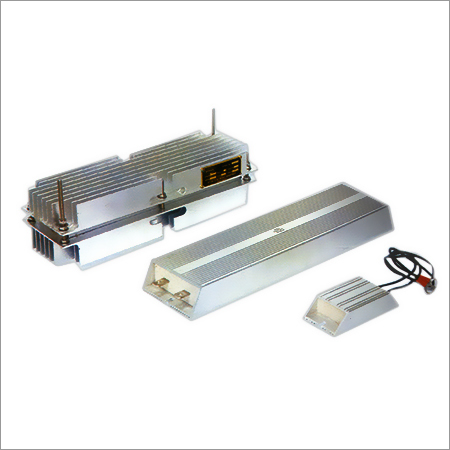

Dynamic Braking Resistors

Dynamic Braking Resistors
Dynamic Braking Resistors
Product Code : DBR-16
Brand Name : LAKSHMI TRADERS
Product Description

Established in 1989, we have become the noteworthy supplier of excellent quality Dynamic Braking Resistors. Highly demanded in electrical and electronic industries, these resistors are used for stopping the motor quickly by means of dynamic braking mechanism. The provided resistors are precisely manufactured at modern production set up by dedicated experts using quality approved components. Apart from this, the offered Dynamic Braking Resistors are accessible to the clients at competitive market rates.

Features:

  • Good electrical stability
  • Robustness
  • Needs less maintenance
  • Over current protection





A breaking resistor is a high wattage resistors used in motor control to help a motor stop quickly through a process known as Dynamic Breaking. Our high power wire wound resistors exhibit high performance life and are extensively used across industry. These resistors comply to international quality & safety standards..

Salient Features :

  • A wide range of Resistance available in 40w to 10000 w.
  • Values from E01 to 100 k.
  • Excellent heat transfer & small dimension.
  • Good Electrical Stability, Reliability & Mechanically strength.
  • Non inductive version available.
  • Customized termination, mounting arrangements available on request.
  • Higher wattage resistors for special applications can be made.

Specification :

  • Range : E1 - 100 K
  • Power : 40 W - 10000 W
  • Tolerance : +5%

Specification :

Operating Temp.

-55oC - +275oC

Temp. Coefficient

50 ppm/oC, 100 ppm/oC, 260 ppm/oC

Insulation Resistance

Insulation Resistance

Short Time Over Load

10 X Wattage Rating, 5 sec

Dielectric Strength

AC 1000V, 2000V for 1 min

Moisture resistance

temp 40°C moisture 95% DC100v500h

Thermal Shock

Wattage Rating 30min. -25oC, 15min

Vibration

10c/c ~ 50 c/s ~ 10 c/s (1min) -2h each of paralleled and right angle.

Load Life

Wattage Rating 1.5 h On, 30min off, 1000h

Derate to zero

at 275oC


Watts@20 C with heatsink

Dimensions(M M)

Approax. Weight(g)


L1

L2

W

H

D


60

115

100

40

20

4.0

110

80

140

125

40

20

4.0

150

100

165

150

40

20

4.0

180

120

190

175

40

20

4.0

240

150

215

200

40

20

4.0

300

200

165

150

60

30

5.3

500

300

215

200

60

30

5.3

700

400

265

250

60

30

5.3

850

500

330

215

60

30

5.3

1000
