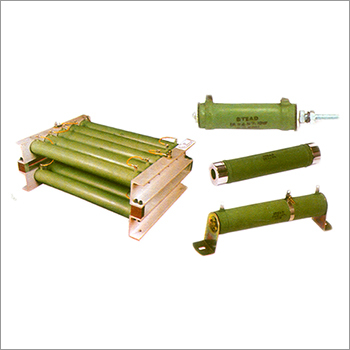

Wire Wound Resistors

Wire Wound Resistors
Wire Wound Resistors
Product Code : WWR-07
Brand Name : LAKSHMI TRADERS
Product Description

Since our establishment in 1989, we have been providing a quality approved range of Wire Wound Resistors. These resistors are extensively installed in UPS, inverters, public address systems, control panels etc. Manufactured with utmost precision by a team of dedicated experts with the aid of pioneering techniques, the offered resistors are also examined under predefined industry norms. These Wire Wound Resistors can be purchased from us in varied specifications at pocket-friendly rates.

Features:

  • Shock proof body
  • Simple installation
  • Robustness
  • Highly durable





A resistor is a two terminal electronic component that produces a voltage across its terminals that is proportional to the electric current passing through it in accordance with Ohm's law :

V = IR
W=I2R

Our wire wound resistors exhibit high performance life and are being extensively used in electronic industries such as public address systems, UPS, Invertor, Panels etc.

Salient Features :

  • A wide range of Resistance available in 1w to 10000 w.

  • Values from E001 to 500 k.

  • Non inductive version available.

  • Higher wattage resistors for special applications can be made.

Resistors Adjustable / Fixed

  • (Silicone Coated)

  • Range : E 001 - 500 K

  • Power : 1 W - 5000 W

  • Tolerance : +10%, +5%, +2%, +1%,

  • TC + 50 PPM, 100 PPM, 200 PPM

STEAD Brand Wirewound resistors are wound with best quality Ni/Cr or Ni/Cr Alloy Resistance Wire having very low temp. Co-efficient on highly alumina based porcelain pipes/rods and wire is protected with high temp. Resistance Compound. The highly plated tin copper wires are being used for terminations,

Range List & Sizes(for Reference)

Watts

Approx. Size in (mm)

Ohms Min.-Max.

1w

20x5

E.1-10K

2w

25x7

E.025-10K

5w

26x9

E.025-20K

10w

46x9

E.02-100K

15w

50x10

E.01-100K

20w

52x14

E.02-100K

25w

65x16

E.02-200K

30w

78x14

E.02-250K

40w

75x20

E.02-400K

50w

100x20

E.02-500K

75w

150x20

E.02-500K

100w

150x26

E.02-500K

150w

170x34

E.02-500K

200w

200x34

E.02-500K

250w

250x34

E.02-500K

300w

300x34

5E-500K

400w

250x62

5E-500K

500w

300x62

5E-500K

600w

350x62

5E-500K

750w

400x62

5E-500K

1000w

500x62

5E--600K

1250w

550x62

25E-750K

1500w

600x62

25E-1000K

The above is a tentative range list, for any enquiry apart form the above please feel free to contact.

  • Tolerance available + 10% - + 1% (Closer tolerance on request)

  • Construction : Non-inductive resistors are available.

  • Terminals for 1 W to 20 W are tin platted copper wire/Brass Strip Tin Platted.

  • 25 W and above brass strip (Tin Platted)
