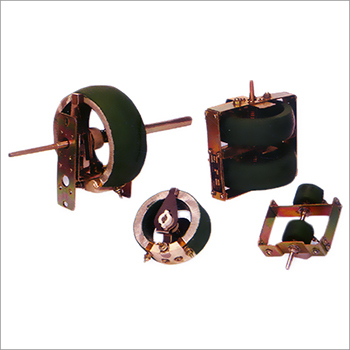

Wirewound potentiometers

Wirewound potentiometers
Wirewound potentiometers
Product Code : WWP-14
Brand Name : LAKSHMI TRADERS
Product Description

As an affluent enterprise, we are successfully running our business by providing a broad range of Wire Wound Potentiometer. Designed with three terminal resistors with a sliding contact, the offered potentiometer is extensively used to control electrical devices like volume control on audio equipments. A crew of ingenious professionals manufacture this potentiometer using excellent grade components and sophisticated techniques. Also, the provided Wire Wound Potentiometer can be easily purchased from us at marginal prices.

Features:

  • Easy to maintain
  • Simple to fit in devices
  • Protects from over load voltage
  • High efficiency



A Potentiometer is commonly known as "pot" is a three terminal resistor with a sliding contact that forms an adjustable voltage divder. Potentiometer are commonly used to control electrical devices such as volume control on audio equipments. Our Potentiometers (Torodial Rheostats) are manufactured in a wide range, which are extensively used in electronic industries.

Features :

  • A wide range of Potentiometers are available from 25w to 1000w.
  • Good Electrical Stability, Reliability & Mechanically strength.
  • Values from 1 ohms to 20k ohms.
  • Customized termination, mounting arrangements available on request.
  • Higher wattage Potentiometers for special applications can be made.

(Single / Gang Type)

  • Range : 1 ohms - 20 K ohms
  • Power : 25 W - 1000 W
  • Tolerance : + 5%, + 10%

Range in OHMS :

TYPE

RANGE IN OHMS.


MIN.

MAX.

PT25

1

2K

PT50

1

3K

PT100

2.5

7.5K

PT150

2.5

7.5K

PT200

5

9K

PT300

10

12.5K

PT400

10

12.5K

PT500

10

15K

PT1000

10

20K

  • These Potentiometer are manufactured in Open Y type, Perforated Type and Graded Winding Type.
  • Customized Potentiometer (Dual or Multiple Core)are made as per requirements.
  • Standard Tolerance+-10% but closer tolerance can also be supplied.

Special Features :

  • The FORMER is made of vitrified porcelain.
  • The best quality CU/NI or NICKLE-CHROMIUM alloy Wire/Tapes depending upon the requirements is used.
  • Copper Graphite permanently lubricated brush contact is used.
  • The Winding is held firmly by VITEROUS ENAMEL or SILICON COATING.
  • Bright Zinc/Nickel plated spring steel BRUSH ARM is used.
  • Glazed porcelain brush arm INSULATING rotor is involved.
  • Best quality SPINDLE is fitted.
